Network Waterfall Chart

The requests a shop's home page makes as it loads, the way the browser's network panel draws them: each request a row, split into its phases, with its DOMContentLoaded and Load moments marked. Throttle the network with Chrome's presets to see what a slow connection does.

  • Try it:
  • Try Slow 4G and 3G
  • Point at a bar for its phase
Get the code JavaScript JSON
About this chart

Reading a waterfall

A network waterfall lines up every request on one clock, so the shape of the page load shows at once: a long first bar is a slow server, steps down the chart are requests that wait for each other, and DNS and connection time appear only where the page talks to a new server. Throttling stretches every round trip and download, and shows which requests stand between the visitor and a usable page.

Good for

  • Page loads, API calls and other request timings
  • Any process of phases per item: builds, pipelines, jobs
  • Finding what waits on what

Think twice when

  • Hundreds of requests: group or filter them first
  • Totals per phase: a stacked bar chart is clearer
For developers

Get the code.

Built with amCharts 5, a JavaScript library. The code includes your theme and renderer (canvas or SVG), but not the changes you make with the controls.

Docs:Column seriesCategory axisAxis rangesLegend
// Create root element
// https://www.amcharts.com/docs/v5/getting-started/#Root_element
var root = am5.Root.new("chartdiv");

// Set themes
// https://www.amcharts.com/docs/v5/concepts/themes/
var responsive = am5themes_Responsive.new(root); // kept in a variable: a rule of its own is added below
root.setThemes([
  am5themes_Animated.new(root),
  responsive
]);


// ── Sample data: the requests a shop's home page makes as it loads, like the network panel of the browser's tools.
// Each request goes through phases: waiting in the queue, finding the server (DNS), connecting to it, waiting for its
// answer and downloading it. A server's first request pays for the DNS lookup and the connection; later ones to the
// same server reuse them ──

// The requests: file, type, server, size (KB), the server's own time to answer (ms), and what has to happen before
// the browser asks for it
var REQUESTS = [
  { url: "index.html", type: "Document", host: "shop.example.com", size: 32, server: 180, after: "start" },
  { url: "styles.css", type: "Stylesheet", host: "shop.example.com", size: 48, server: 25, after: "html" },
  { url: "vendor.js", type: "Script", host: "shop.example.com", size: 420, server: 20, after: "html" },
  { url: "app.js", type: "Script", host: "shop.example.com", size: 310, server: 20, after: "html" },
  { url: "fonts.css", type: "Stylesheet", host: "fonts.example.net", size: 2, server: 30, after: "html" },
  { url: "inter.woff2", type: "Font", host: "fonts.example.org", size: 38, server: 15, after: "fonts.css" },
  { url: "inter-bold.woff2", type: "Font", host: "fonts.example.org", size: 41, server: 15, after: "fonts.css" },
  { url: "logo.svg", type: "Image", host: "shop.example.com", size: 6, server: 10, after: "html" },
  { url: "hero.webp", type: "Image", host: "img.example-cdn.com", size: 180, server: 30, after: "html" },
  { url: "product-1.webp", type: "Image", host: "img.example-cdn.com", size: 64, server: 25, after: "html" },
  { url: "product-2.webp", type: "Image", host: "img.example-cdn.com", size: 58, server: 25, after: "html" },
  { url: "product-3.webp", type: "Image", host: "img.example-cdn.com", size: 71, server: 25, after: "html" },
  { url: "product-4.webp", type: "Image", host: "img.example-cdn.com", size: 49, server: 25, after: "html" },
  { url: "api/user", type: "Fetch", host: "api.example.com", size: 8, server: 90, after: "app.js" },
  { url: "api/products", type: "Fetch", host: "api.example.com", size: 24, server: 140, after: "app.js" },
  { url: "analytics.js", type: "Script", host: "stats.example.io", size: 45, server: 40, after: "dcl" },
  { url: "favicon.ico", type: "Image", host: "shop.example.com", size: 4, server: 10, after: "load" }
];

// Network speeds: a round trip's latency (ms) and the download speed (kilobits/s). Without throttling a fast office
// connection; the others are Chrome's own throttling presets
var PROFILES = {
  none: { rtt: 20, kbps: 50000 },
  fast4g: { rtt: 165, kbps: 8100 },
  slow4g: { rtt: 562.5, kbps: 1440 },
  slow3g: { rtt: 2000, kbps: 400 }
};

// A seeded random number generator (mulberry32): the same timings on every visit
function makeRandom(seed) {
  return function() {
    seed = seed + 0x6D2B79F5 | 0;
    var t = Math.imul(seed ^ seed >>> 15, 1 | seed);
    t = t + Math.imul(t ^ t >>> 7, 61 | t) ^ t;
    return ((t ^ t >>> 14) >>> 0) / 4294967296;
  };
}

// Each request's phases at a speed, and when the page's DOMContentLoaded and load events fire
function simulate(profile) {
  var random = makeRandom(2026);
  var kbPerMs = profile.kbps / 8 / 1000;   // kilobytes a millisecond
  var connectedAt = {};                    // when the connection to each server was up
  var done = {};                           // when each request finished
  var phases = [];
  var events = { start: 0 };

  REQUESTS.forEach(function(request) {
    // when the browser can ask: at the start, once the HTML has started to arrive (the parser finds the tags), once
    // a file it depends on is in, or after the page's own events
    var ready = request.after === "html" ? events.html + 5 + 30 * random() : (events[request.after] !== undefined ? events[request.after] : done[request.after]);
    var t = ready;
    var parts = [];
    function phase(name, ms) {
      parts.push({ url: request.url, phase: name, start: Math.round(t * 10) / 10, end: Math.round((t + ms) * 10) / 10, duration: Math.round(ms) });
      t += ms;
    }
    var queue = 1 + (request.type === "Image" ? 15 : 3) * random(); // images wait behind more urgent requests
    // a request to a server that is still being connected to waits for that connection (the browser calls it stalled)
    if (connectedAt[request.host] !== undefined) {
      queue = Math.max(queue, connectedAt[request.host] - t);
    }
    phase("Queueing", queue);
    if (connectedAt[request.host] === undefined) {
      // the first request to a server finds it and connects to it; later ones reuse the connection
      phase("DNS lookup", profile.rtt * (0.5 + 0.5 * random()));
      phase("Connecting", profile.rtt * 2);  // TCP, then TLS
      connectedAt[request.host] = t;
    }
    phase("Waiting for server", profile.rtt + request.server);
    // a bit under the line's speed: the other downloads share it
    phase("Content download", Math.max(1, request.size / kbPerMs * (1.1 + 0.4 * random())));
    parts.forEach(function(p) {
      p.type = request.type;
      p.host = request.host;
      p.size = request.size;
      phases.push(p);
    });
    done[request.url] = t;

    // the page's milestones: the HTML's first bytes, then DOMContentLoaded once the HTML, the styles and the
    // scripts are in and the scripts have run
    if (request.url === "index.html") { events.html = t - (t - parts[parts.length - 1].start) * 0.7; }
    if (request.url === "app.js") {
      events.dcl = Math.max(done["index.html"], done["styles.css"], done["vendor.js"], done["app.js"]) + 90;
    }
    if (request.url === "analytics.js") {
      // load fires once everything the page itself loads is in: its files and images, and a script added before load,
      // like the analytics. Requests made with fetch() don't hold it
      events.load = Math.max.apply(null, REQUESTS.filter(function(q) {
        return q.type !== "Fetch" && done[q.url] !== undefined;
      }).map(function(q) { return done[q.url]; })) + 15;
    }
  });
  return { phases: phases, dcl: Math.round(events.dcl), load: Math.round(events.load), end: Math.max.apply(null, phases.map(function(p) { return p.end; })) };
}


// Create chart
// https://www.amcharts.com/docs/v5/charts/xy-chart/
var chart = root.container.children.push(am5xy.XYChart.new(root, {
  panX: false,
  panY: false,
  wheelX: "none",
  wheelY: "none",
  paddingRight: 30, // room for the last time label, which is centered on the plot's edge
  layout: root.verticalLayout
}));

// Add legend: the phases
// https://www.amcharts.com/docs/v5/charts/xy-chart/legend-xy-series/
var legend = chart.children.unshift(am5.Legend.new(root, {
  centerX: am5.p50,
  x: am5.p50,
  marginBottom: 10
}));

// Create axes
// https://www.amcharts.com/docs/v5/charts/xy-chart/axes/
// The requests down the side, in the order the browser made them
var yRenderer = am5xy.AxisRendererY.new(root, {
  inversed: true,          // the first request at the top
  minGridDistance: 8,      // a label for every request
  cellStartLocation: 0.2,  // the bars thinner than the rows
  cellEndLocation: 0.8
});
yRenderer.labels.template.setAll({
  fontSize: "0.8em",
  maxWidth: 130,
  oversizedBehavior: "truncate"
});
yRenderer.grid.template.set("strokeOpacity", 0.05);
var yAxis = chart.yAxes.push(am5xy.CategoryAxis.new(root, {
  categoryField: "url",
  renderer: yRenderer
}));
yAxis.data.setAll(REQUESTS);

// The time since the page was asked for, along the top
var xRenderer = am5xy.AxisRendererX.new(root, {
  opposite: true,
  minGridDistance: 70
});
xRenderer.grid.template.set("strokeOpacity", 0.06);
var xAxis = chart.xAxes.push(am5xy.ValueAxis.new(root, {
  min: 0,
  numberFormat: "#,###' ms'",
  renderer: xRenderer
}));

// Create series
// https://www.amcharts.com/docs/v5/charts/xy-chart/series/
// One series per phase, so the legend names them and can hide each: a phase is a floating bar on its request's row,
// from when it started to when it ended. The queue in a faint gray, the rest in the theme's colors
var gray = root.interfaceColors.get("alternativeBackground");
var series = ["Queueing", "DNS lookup", "Connecting", "Waiting for server", "Content download"].map(function(name) {
  var settings = {
    name: name,
    xAxis: xAxis,
    yAxis: yAxis,
    openValueXField: "start",
    valueXField: "end",
    categoryYField: "url",
    clustered: false // the phases share their request's row
  };
  if (name === "Queueing") {
    settings.fill = gray;
    settings.stroke = gray;
  }
  var s = chart.series.push(am5xy.ColumnSeries.new(root, settings));
  s.columns.template.setAll({
    strokeOpacity: 0,
    fillOpacity: name === "Queueing" ? 0.25 : 1,
    tooltipText: "[bold]{url}[/]\n" + name + ": {duration} ms\n{type}, {size} KB from {host}",
    tooltipY: 0
  });
  legend.data.push(s);
  return s;
});

// The page's two milestones as lines across the requests: DOMContentLoaded (the HTML read and its scripts run) and
// load (everything the page asked for is in)
// https://www.amcharts.com/docs/v5/charts/xy-chart/axes/axis-ranges/
function milestone(color, side) {
  var range = xAxis.createAxisRange(xAxis.makeDataItem({ value: 0 }));
  range.get("grid").setAll({
    forceHidden: false,
    stroke: color,
    strokeOpacity: 1,
    strokeWidth: 1.5,
    strokeDasharray: [4, 3]
  });
  range.get("label").setAll({
    forceHidden: false,
    fill: color,
    fontSize: "0.75em",
    fontWeight: "600",
    dy: 24,             // down into the plot, below the time axis's own labels
    paddingTop: 2,
    paddingBottom: 2,
    paddingLeft: 4,
    paddingRight: 4,
    background: am5.RoundedRectangle.new(root, {
      fill: root.interfaceColors.get("background"), // the chart's background, so the bars behind don't show through
      fillOpacity: 0.9
    }),
    centerY: 0,
    // DOMContentLoaded's name to the left of its line, Load's to the right, so the two never overlap
    centerX: side < 0 ? am5.p100 : 0,
    dx: 5 * side
  });
  return range;
}
var dclRange = milestone(root.interfaceColors.get("primaryButton"), -1);
var loadRange = milestone(root.interfaceColors.get("negative"), 1);

// On a narrow chart (a phone) the legend would take most of the height: it is hidden there, and so are the milestones' labels (their lines stay). The rule is
// undone on a wider chart
responsive.addRule({
  relevant: am5themes_Responsive.widthM, // the chart is 600px wide or less
  applying: function() {
    legend.set("forceHidden", true);
    dclRange.get("label").set("forceHidden", true); // the lines stay
    loadRange.get("label").set("forceHidden", true);
  },
  removing: function() {
    legend.set("forceHidden", false);
    dclRange.get("label").set("forceHidden", false);
    loadRange.get("label").set("forceHidden", false);
  }
});

// Shows the page loading at a network speed: "none", "fast4g", "slow4g" or "slow3g"
function showRequests(name) {
  var result = simulate(PROFILES[name]);
  series.forEach(function(s) {
    s.data.setAll(result.phases.filter(function(p) { return p.phase === s.get("name"); }));
  });
  dclRange.set("value", result.dcl);
  dclRange.get("label").set("text", "DOMContentLoaded " + result.dcl.toLocaleString("en-US") + " ms");
  loadRange.set("value", result.load);
  loadRange.get("label").set("text", "Load " + result.load.toLocaleString("en-US") + " ms");
  xAxis.set("max", Math.ceil(result.end * 1.04 / 50) * 50); // the last request, with a little room
}

showRequests("none");

// Make stuff animate on load
// https://www.amcharts.com/docs/v5/concepts/animations/
chart.appear(1000, 100);

More Column & Bar demos.

All Column & Bar demosAll demos

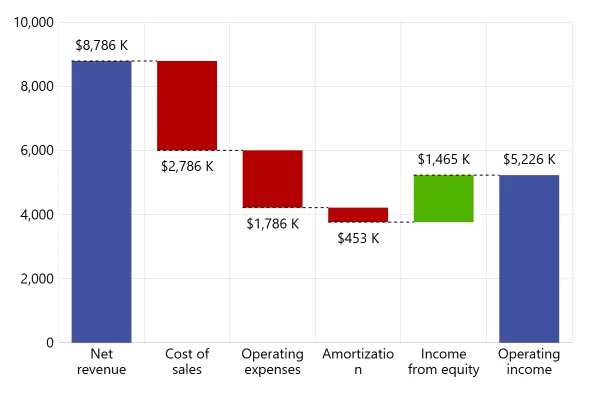

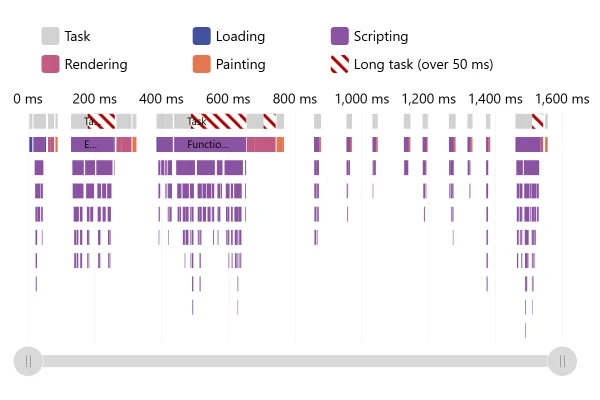

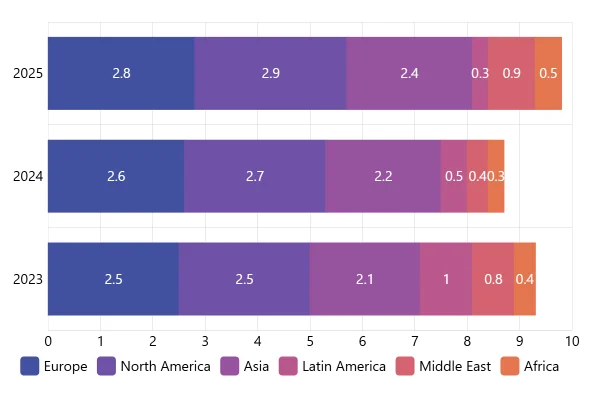

Flame Chart Gantt Chart Waterfall Chart Stacked Bar Chart
