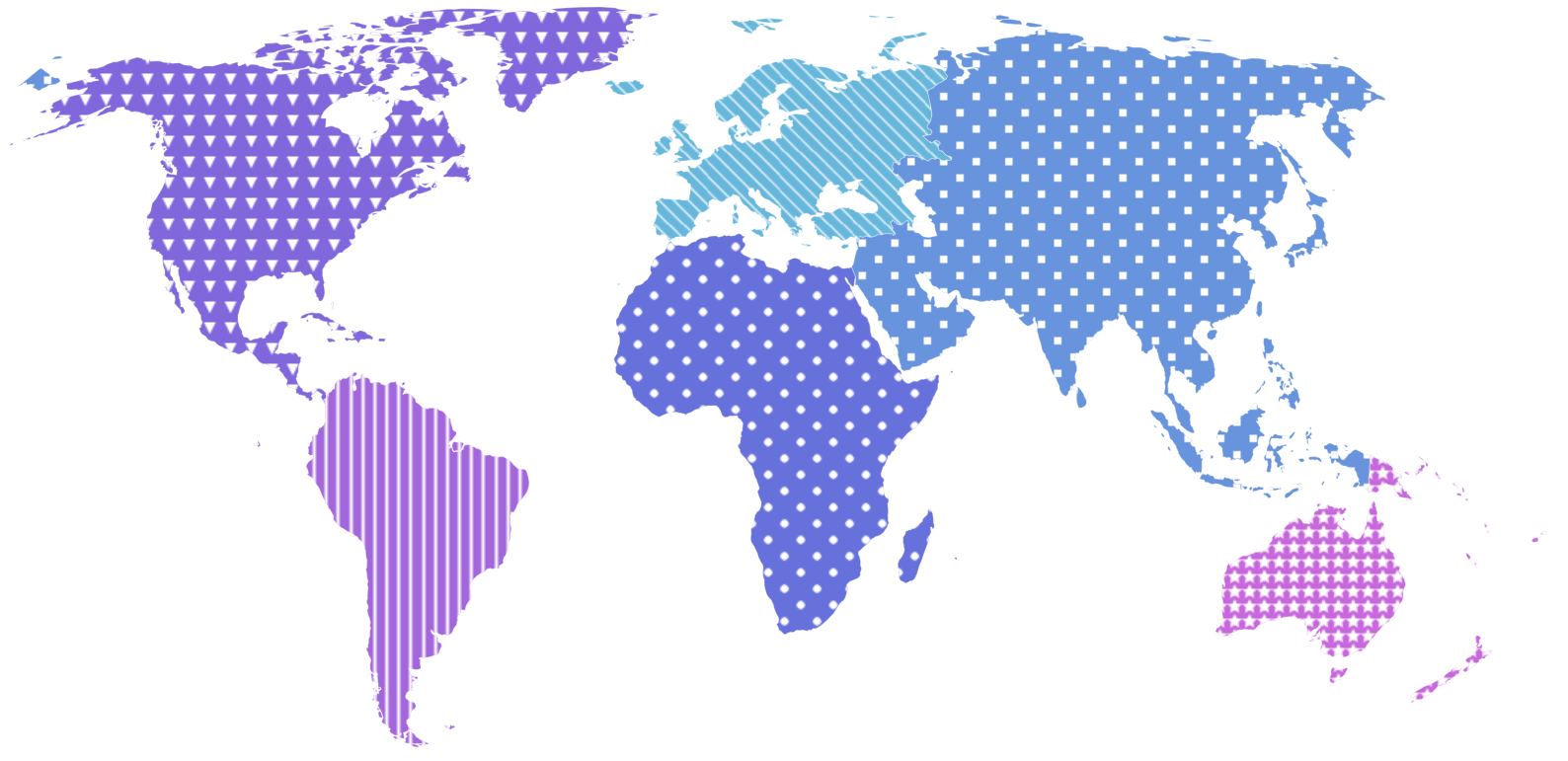

Two new pattern types, a faster way to rotate any shape-grid pattern, and PathPattern reworked to tile properly.

StarPattern

A grid of stars. Spike count and inner radius are configurable, so it covers everything from a sharp 5-point star to a soft rosette.

series.set("fillPattern", am5.StarPattern.new(root, {
  color: am5.color(0x000000),
  radius: 6,
  innerRadius: am5.percent(45),
  spikes: 6,
  gap: 3,
  checkered: true
}));

Setting	Default	Description
`radius`	`5`	Outer radius of the star, in pixels.
`innerRadius`	`50%`	Inner radius — absolute pixels or a percent of `radius`. Higher values make a blunter, flower-like shape.
`spikes`	`5`	Number of spikes.
`gap`	`6`	Gap between stars, in pixels.
`checkered`	`false`	Place every second star, for a checkered layout.
`centered`	`true`	Center stars in their grid cell.
`rotateShapes`	`false`	See below.

TrianglePattern

A grid of triangles, sized by bounding box.

series.set("fillPattern", am5.TrianglePattern.new(root, {
  color: am5.color(0x000000),
  maxWidth: 8,
  maxHeight: 8,
  gap: 6,
  rotation: 180,
  rotateShapes: true
}));

Setting	Default	Description
`maxWidth`	`8`	Triangle width, in pixels.
`maxHeight`	`8`	Triangle height, in pixels.
`gap`	`6`	Gap between triangles, in pixels.
`checkered`	`false`	Place every second triangle.
`centered`	`true`	Center triangles in their grid cell.
`rotateShapes`	`false`	See below.

Set rotation: 180 with rotateShapes: true to flip the triangles point-down.

`rotateShapes`

New on RectanglePattern, and supported by both new patterns.

By default, rotation rotates the whole pattern tile. That works, but an axis-aligned tile isn’t periodic once you rotate it, so the tile has to be large enough to avoid seams — which costs memory and draw time.

With rotateShapes: true, rotation instead spins each shape around its own center while the grid stays axis-aligned. That tiles seamlessly at any angle, and a small width/height is enough.

// 45° diamonds from a tiny tile
series.set("fillPattern", am5.RectanglePattern.new(root, {
  color: am5.color(0x000000),
  width: 14,
  height: 14,
  maxWidth: 11,
  maxHeight: 11,
  gap: 7,
  rotation: 45,
  rotateShapes: true
}));

For diagonal hatching specifically, LinePattern already has its own angle setting — keep using that.

PathPattern now repeats on a grid

PathPattern used to draw the SVG path once and leave the repetition to the rendering engine. It now lays the motif out on a grid itself, the same way the other shape patterns do, and gains the matching settings:

Setting	Default	Description
`gap`	`6`	Gap between motifs, in pixels.
`maxWidth` / `maxHeight`	`10`	The path is scaled, keeping aspect ratio, to fit this box.
`checkered`	`false`	Place every second motif.
`centered`	`true`	Center motifs in their grid cell.

rotation here always rotates each motif around its own center, so PathPattern tiles seamlessly at any angle without needing rotateShapes.

Smaller tiles

Shape-grid patterns now shrink an oversized width/height down to the minimal seamless repeat unit — one cell, or 2×2 when checkered. The result looks identical, just with less memory and draw time. It’s skipped when a whole-pattern rotation is in play (which isn’t periodic on an axis-aligned tile) or when repetition isn’t "repeat".

Practically: you no longer need to hand-tune tile size for performance. Set radius/maxWidth/gap and leave width/height alone.

Fixes

LinePattern with a non-zero angle could show a seam instead of tiling seamlessly.
LinePattern with a non-zero rotation could render broken or dashed lines after the tile-size optimization. The auto-shrink is now skipped when rotation is set.
RectanglePattern and CirclePattern with a non-zero rotation could render nothing at all on larger tiles.
